Gas Spring Series 10-23-200 mm Specify Newton Force Below

CONVERSION TABLE FROM NEWTON FORCE TO PSI, BAR, KG, LBS.

*Psi and Bar relates to the pressure inside the gas spring cylinder for this series.

*Kg and Lbs relates to the weight balanced by a specific Newton for this series.

*Force For each application add 10% force to compensate for friction etc.

FORCE CALCULATION FOR HATCHES AS FOLLOWS:

CAUTION: Forces are high when using the 10-23 and 14-28 series gas springs.

Use profesional engineers to help calculate the correct set up.

This includes strong deck reinforments, hinge structures and brackets.

Using 1 gas spring 10-23-200 with 1200 Newton Force:

A hatch of max 31.5 inch or 800 mm length with a weight of max 132 Lbs. or 60 kg

Using 2 gas springs with 1200 Newton Force a hatch can weigh max. 264 lbs. or 120 kg.

Max Hatch Length: Best be max. 31.5 inches or 800 mm.

Length is the distance from the hinge pin to the locking side.

Install the gas spring as far away as possible from the hinge within the range of the stroke.

Alternative: For a smooth operation we advise using the next series up.

For instance a 14-28-200 series gas spring with 1200 Newton. Note: Different overal length set up!

Please note: Torque on the hinges will be at least be twice the force of the weight of the hatch.

In this case: 120 kg or 264 lbs torque PER HINGE using 2 hinges and using 2 gas springs on a hatch weighing 264 lbs.

GENERAL INFORMATION:

Use incremental lesser force for gas springs when hatch is lighter.

Use gas spring with a shorter stroke for smaller hatches.

When the hatch is thick, use a gas spring with the next size up.

(For instance: 10-23-series with 250 mm stroke)

Use our 14-28 series gas springs with a Newton Forces up to 2500 N.

Concidder our charging Kit #63.110 for professional users to charge your own gas spring.

Considder our Bleeding Kit #63.001 to bleed down the pressure in your gas spring.

Use mathematical calculations and scaled computor drawings to identify gas springs size and series, and to find the correct force setting.

We are only providing general suggestions to complement your calculations.

By purchasing our products you agree that we are not in any way liable or responsible for your actual installations of our products and its effects.

Izerwaren Inc.

Stainless Steel Stock Range.
Model: Compression.
Material: Stainless Steel.

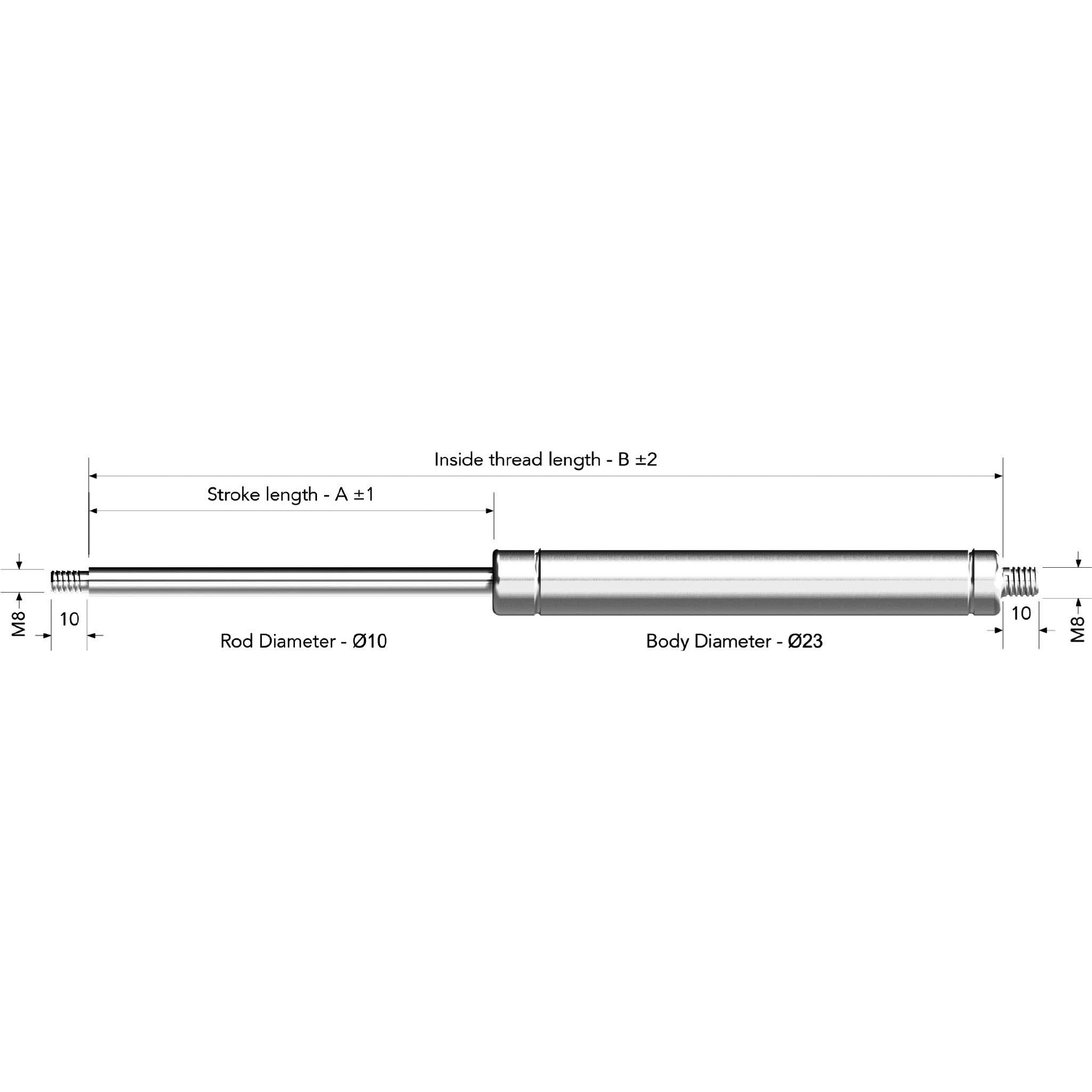

Rod Diameter(mm): 10.
Body Diameter(mm): 23.
Finish: Polished.
Stroke Length(mm): 200.
Inside Thread Length (mm): 445.
Customisations: With Valve.
Thread Size: M8 x 1.25.
Minimum Force (N): 100.
Maximum Force (N): 1250.
